T-SQL存储过程创建PDF格式文件(报表)

发表于:2007-05-25来源:作者:点击数: 标签:
转贴,仅引用了 FSO,PDF 格式可以自己写,就像标志语言: Creating a PDF from a Stored Procedure http://www.sqlservercentral.com/columnists/mivica/creatingapdffromastoredprocedure.asp 不愿注册就贴出来: Creating a PDF from a Stored Procedure Regul

转贴,仅引用了 FSO,PDF 格式可以自己写,就像标志语言:

Creating a PDF from a Stored Procedure

http://www.sqlservercentral.com/columnists/mivica/creatingapdffromastoredprocedure.asp



不愿注册就贴出来:

Creating a PDF from a Stored Procedure

Regular Columnist : M Ivica
Posted: 08/26/2003
More Articles From This Columnist
14089 Reads

Add Article to Your Virtual Briefcase  (What is this?)

Article Rating   Total number of votes [183]



This Content Sponsored by:
Is SQL the Center of your Universe?
SQLCentric is a comprehensive web-based network database monitoring and alert system. - brought to you by Pearl Knowledge Solutions, Inc.
http://www.pearlknows.com

This article explains how to create a a stored procedure that will in turn create a simple column based report in PDF without using any external tools or libraries (and their associated licensing costs!).

SQL2PDF makes a PDF report from text inserted in the table psopdf ( nvarchar(80) ). First a table named psopdf should be created.

CREATE TABLE psopdf (code NVARCHAR(80))

After that create the stored procedure SQL2PDF.

SQL2PDF.TXT

And table psopdf has to be filled with your data as shown in examples below.
At the end the stored procedure is called using the file name only (not extension).

EXEC sql2pdf 'fileName'

The result is in your C:\ directory.

EXAMPLE 1:

INSERT psopdf(code) SELECT SPACE(60) + 'COMPANY LTD'
INSERT psopdf(code) SELECT SPACE(60) + 'COMPANY ADDRESS'
INSERT psopdf(code) SELECT SPACE(60) + 'STREET NAME & No'
INSERT psopdf(code) SELECT ' '
INSERT psopdf(code) SELECT SPACE(34) + 'BILL OF SALE'
INSERT psopdf(code) SELECT ' '
INSERT psopdf(code) SELECT 'Product' + SPACE(10) + 'Quantity'
+ SPACE(10) + 'Price' + SPACE(10) + 'Total'
INSERT psopdf(code) SELECT REPLACE(SPACE(56), ' ', '_')
INSERT psopdf(code) SELECT 'Product1' + SPACE(9) + '10.00 '
+ SPACE(10) + '52.30' + SPACE(10) + '5230.0'
INSERT psopdf(code) SELECT 'Product2' + SPACE(9) + '2.00 '
+ SPACE(10) + '10.00' + SPACE(10) + ' 20.0'
INSERT psopdf(code) SELECT REPLACE(SPACE(56), ' ', '_')
INSERT psopdf(code) SELECT SPACE(50) + '5250.0'

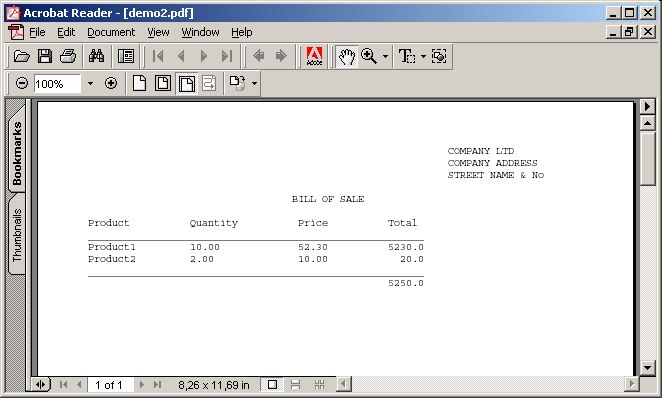

After INSERT call the stored procedure with file name demo2.

EXEC sql2pdf 'demo2'

The result is in your C:\ directory.

EXAMPLE 2:

Second example uses a database pubs.

USE pubs
INSERT psopdf(code) SELECT t1.au_lname + ' ' + t1.au_fname + ' ' + t1.phone
  +
 ' ' + t1.address + ' ' + t1.city + ' ' + t1.state + ' ' + t1.zip FROM
 authors t1, authors t2

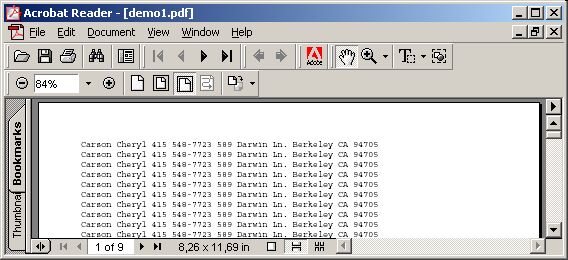

After INSERT call the stored procedure with file name demo1.

EXEC sql2pdf 'demo1'

>The result is in your C:\ directory.



sql2pdf.txt

-- DROP PROCEDURE sql2pdf
CREATE PROCEDURE sql2pdf
   @filename VARCHAR(100)
AS
  CREATE TABLE #pdf (idnumber INT IDENTITY(1,1)
  		    ,code NVARCHAR(200))
  CREATE TABLE #xref (idnumber INT IDENTITY(1,1)
  		    ,code VARCHAR(30))
  CREATE TABLE #text (idnumber INT IDENTITY(1,1)
  		    ,code VARCHAR(200))

  DECLARE @end VARCHAR(7),
  	@beg   VARCHAR(7),
  	@a1    VARCHAR(3),
  	@a2    VARCHAR(3),
  	@ad    VARCHAR(5),
  	@cr    VARCHAR(8),
  	@pr    VARCHAR(9),
  	@ti    VARCHAR(6),
  	@xstr  VARCHAR(10),
  	@page  VARCHAR(8000),
	@pdf   VARCHAR(100),
	@trenutniRed NVARCHAR(200),
  	@rows   INT,
  	@ofset  INT,
  	@len    INT,
  	@nopg   INT,
        @fs 	INT,
	@ole    INT,
	@x 	INT,
	@file   INT,
  	@object INT
  SELECT @pdf = 'C:\' + @filename + '.pdf'
  SET @page = '
  SET @nopg = 0
  SET @object = 6
  SET @end = 'endobj'
  SET @beg = ' 0 obj'
  SET @a1 = '<<'
  SET @a2 = '>>'
  SET @ad = ' 0 R'
  SET @cr = CHAR(67) + CHAR(114) + CHAR (101) + CHAR(97) + CHAR(116) + CHAR (111) + CHAR(114)
  SET @pr = CHAR(80) + CHAR(114) + CHAR (111) + CHAR(100) + CHAR(117) + CHAR (99 ) + CHAR(101) + CHAR(114)
  SET @ti = CHAR(84) + CHAR(105) + CHAR (116) + CHAR(108) + CHAR(101)
  SET @xstr = ' 00000 n'
  SET @ofset = 396
  INSERT INTO #xref(code) VALUES ('xref')
  INSERT INTO #xref(code) VALUES ('0 10')
  INSERT INTO #xref(code) VALUES ('0000000000 65535 f')
  INSERT INTO #xref(code) VALUES ('0000000017' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000790' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000869' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000144' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000247' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000321' + @xstr)
  INSERT INTO #xref(code) VALUES ('0000000396' + @xstr)
  INSERT INTO #pdf (code) VALUES ('%' + CHAR(80) + CHAR(68) + CHAR (70) + '-1.2')
  INSERT INTO #pdf (code) VALUES ('%佑佑')
  INSERT INTO #pdf (code) VALUES ('1' + @beg)
  INSERT INTO #pdf (code) VALUES (@a1)
  INSERT INTO #pdf (code) VALUES ('/' + @cr + ' (Ivica Masar ' + CHAR(80) + CHAR(83) + CHAR (79) + CHAR(80) + CHAR(68) + CHAR (70) + ')')
  INSERT INTO #pdf (code) VALUES ('/' + @pr + ' (stored procedure for ms sql  pso@vip.hr)')
  INSERT INTO #pdf (code) VALUES ('/' + @ti + ' (SQL2' + CHAR(80) + CHAR(68) + CHAR (70) + ')')
  INSERT INTO #pdf (code) VALUES (@a2)
  INSERT INTO #pdf (code) VALUES (@end)
  INSERT INTO #pdf (code) VALUES ('4' + @beg)
  INSERT INTO #pdf (code) VALUES (@a1)
  INSERT INTO #pdf (code) VALUES ('/Type /Font')
  INSERT INTO #pdf (code) VALUES ('/Subtype /Type1')
  INSERT INTO #pdf (code) VALUES ('/Name /F1')
  INSERT INTO #pdf (code) VALUES ('/Encoding 5' + @ad)
  INSERT INTO #pdf (code) VALUES ('/BaseFont /Courier')
  INSERT INTO #pdf (code) VALUES (@a2)
  INSERT INTO #pdf (code) VALUES (@end)
  INSERT INTO #pdf (code) VALUES ('5' + @beg)
  INSERT INTO #pdf (code) VALUES (@a1)
  INSERT INTO #pdf (code) VALUES ('/Type /Encoding')
  INSERT INTO #pdf (code) VALUES ('/BaseEncoding /WinAnsiEncoding')
  INSERT INTO #pdf (code) VALUES (@a2)
  INSERT INTO #pdf (code) VALUES (@end)
  INSERT INTO #pdf (code) VALUES ('6' + @beg)
  INSERT INTO #pdf (code) VALUES (@a1)
  INSERT INTO #pdf (code) VALUES ('  /Font ' + @a1 + ' /F1 4' + @ad + ' ' + @a2 + '  /ProcSet [ /' + CHAR(80) + CHAR(68) + CHAR (70) + ' /Text ]')
  INSERT INTO #pdf (code) VALUES (@a2)
  INSERT INTO #pdf (code) VALUES (@end)
  INSERT INTO #text(code) (SELECT code FROM psopdf)
  SELECT @x = COUNT(*) FROM #text
  SELECT @x = (@x / 60) + 1
  WHILE  @nopg < @x
    BEGIN
      DECLARE SysKursor  INSENSITIVE SCROLL CURSOR
      FOR SELECT SUBSTRING((code + SPACE(81)), 1, 80) FROM #text WHERE idnumber BETWEEN ((@nopg * 60) + 1) AND ((@nopg + 1) * 60 )
      FOR READ ONLY
      OPEN SysKursor
      FETCH NEXT FROM SysKursor INTO @trenutniRed
      SELECT @object = @object + 1
      SELECT @page = @page +  ' ' + CAST(@object AS VARCHAR) + @ad
      SELECT @len = LEN(@object) + LEN(@object + 1)
      INSERT INTO #pdf (code) VALUES (CAST(@object AS VARCHAR)  + @beg)
      INSERT INTO #pdf (code) VALUES (@a1)
      INSERT INTO #pdf (code) VALUES ('/Type /Page')
      INSERT INTO #pdf (code) VALUES ('/Parent 3' + @ad)
      INSERT INTO #pdf (code) VALUES ('/Resources 6' + @ad)
      SELECT @object = @object + 1
      INSERT INTO #pdf (code) VALUES ('/Contents ' + CAST(@object AS VARCHAR) + @ad)
      INSERT INTO #pdf (code) VALUES (@a2)
      INSERT INTO #pdf (code) VALUES (@end)
      SELECT @ofset = @len + 86 + @ofset
      INSERT INTO #xref(code) (SELECT SUBSTRING('0000000000' + CAST(@ofset AS VARCHAR),
    	LEN('0000000000' + CAST(@ofset AS VARCHAR)) - 9,
    	LEN('0000000000' + CAST(@ofset AS VARCHAR))) + @xstr)
      INSERT INTO #pdf (code) VALUES (CAST(@object AS VARCHAR)  + @beg)
      INSERT INTO #pdf (code) VALUES (@a1)
      SELECT @object = @object + 1
      INSERT INTO #pdf (code) VALUES ('/Length ' + CAST(@object AS VARCHAR) + @ad)
      INSERT INTO #pdf (code) VALUES (@a2)
      INSERT INTO #pdf (code) VALUES ('stream')
      INSERT INTO #pdf (code) VALUES ('BT')
      INSERT INTO #pdf (code) VALUES ('/F1 10 Tf')
      INSERT INTO #pdf (code) VALUES ('1 0 0 1 50 802 Tm')
      INSERT INTO #pdf (code) VALUES ('12 TL')
      WHILE @@Fetch_Status = 0
         BEGIN
             INSERT INTO #pdf (code) VALUES ('T* (' + @trenutniRed + ') Tj')
             FETCH NEXT FROM  SysKursor INTO @trenutniRed
          END
      INSERT INTO #pdf (code) VALUES ('ET')
      INSERT INTO #pdf (code) VALUES ('endstream')
      INSERT INTO #pdf (code) VALUES (@end)
      SELECT @rows = (SELECT COUNT(*) FROM #text WHERE idnumber BETWEEN ((@nopg * 60) + 1) AND ((@nopg + 1) * 60 ))* 90 + 45
      SELECT @nopg = @nopg + 1
      SELECT @len = LEN(@object) + LEN(@object - 1)
      SELECT @ofset = @len + 57 + @ofset + @rows
      INSERT INTO #xref(code) (SELECT SUBSTRING('0000000000' + CAST(@ofset AS VARCHAR),
     	LEN('0000000000' + CAST(@ofset AS VARCHAR)) - 9,
   	LEN('0000000000' + CAST(@ofset AS VARCHAR))) + @xstr)
      INSERT INTO #pdf (code) VALUES (CAST(@object AS VARCHAR)  + @beg)
      INSERT INTO #pdf (code) VALUES (@rows)
      INSERT INTO #pdf (code) VALUES (@end)
      SELECT @len = LEN(@object) + LEN(@rows)
      SELECT @ofset = @len + 18 + @ofset
      INSERT INTO #xref(code) (SELECT SUBSTRING('0000000000' + CAST(@ofset AS VARCHAR),
    	LEN('0000000000' + CAST(@ofset AS VARCHAR)) - 9,
    	LEN('0000000000' + CAST(@ofset AS VARCHAR))) + @xstr)
      CLOSE SysKursor
      DEALLOCATE SysKursor
    END
    INSERT INTO #pdf (code) VALUES ('2' + @beg)
    INSERT INTO #pdf (code) VALUES (@a1)
    INSERT INTO #pdf (code) VALUES ('/Type /Catalog')
    INSERT INTO #pdf (code) VALUES ('/Pages 3' + @ad)
    INSERT INTO #pdf (code) VALUES ('/PageLayout /OneColumn')
    INSERT INTO #pdf (code) VALUES (@a2)
    INSERT INTO #pdf (code) VALUES (@end)
    UPDATE #xref SET code = (SELECT code FROM #xref WHERE idnumber = (SELECT MAX(idnumber) FROM #xref)) WHERE idnumber = 5
    DELETE FROM #xref WHERE idnumber = (SELECT MAX(idnumber) FROM #xref)
    INSERT INTO #pdf (code) VALUES ('3' + @beg)
    INSERT INTO #pdf (code) VALUES (@a1)
    INSERT INTO #pdf (code) VALUES ('/Type /Pages')
    INSERT INTO #pdf (code) VALUES ('/Count ' + CAST(@nopg AS VARCHAR))
    INSERT INTO #pdf (code) VALUES ('/MediaBox [ 0 0 595 842 ]')
    INSERT INTO #pdf (code) VALUES ('/Kids [' + @page + ' ]')
    INSERT INTO #pdf (code) VALUES (@a2)
    INSERT INTO #pdf (code) VALUES (@end)
    SELECT @ofset = @ofset + 79
    UPDATE #xref SET code =(SELECT SUBSTRING('0000000000' + CAST(@ofset AS VARCHAR),
  	LEN('0000000000' + CAST(@ofset AS VARCHAR)) - 9,
  	LEN('0000000000' + CAST(@ofset AS VARCHAR))) + @xstr) WHERE idnumber = 6
    INSERT INTO #xref(code) VALUES ('trailer')
    INSERT INTO #xref(code) VALUES (@a1)
    SELECT @object = @object + 1
    UPDATE #xref SET code = '0 ' + CAST(@object AS VARCHAR) WHERE idnumber = 2
    INSERT INTO #xref(code) VALUES ('/Size ' + CAST(@object AS VARCHAR))
    INSERT INTO #xref(code) VALUES ('/Root 2' + @ad)
    INSERT INTO #xref(code) VALUES ('/Info 1' + @ad)
    INSERT INTO #xref(code) VALUES (@a2)
    INSERT INTO #xref(code) VALUES ('startxref')
    SELECT @len = LEN(@nopg) + LEN(@page)
    SELECT @ofset = @len + 86 + @ofset
    INSERT INTO #xref(code) VALUES (@ofset)
    INSERT INTO #xref(code) VALUES ('%%' + CHAR(69) + CHAR (79) + CHAR(70))
    INSERT INTO #pdf (code) (SELECT code FROM #xref)
    --SELECT code FROM #pdf
    SELECT @trenutniRed = 'del '+ @pdf
    EXECUTE @ole = sp_OACreate 'Scripting.FileSystemObject', @fs OUT
    EXEC master..xp_cmdshell @trenutniRed, NO_OUTPUT

    EXECUTE @ole = sp_OAMethod @fs, 'OpenTextFile', @file OUT, @pdf, 8, 1

    DECLARE SysKursor  INSENSITIVE SCROLL CURSOR
    FOR SELECT code FROM #pdf ORDER BY idnumber
    FOR READ ONLY
    OPEN SysKursor
    FETCH NEXT FROM SysKursor INTO @trenutniRed
    WHILE @@Fetch_Status = 0
	BEGIN
	  EXECUTE @ole = sp_OAMethod @file, 'WriteLine', Null, @trenutniRed
	  FETCH NEXT FROM  SysKursor INTO @trenutniRed
        END
    CLOSE SysKursor
    DEALLOCATE SysKursor
    DELETE FROM psopdf
    EXECUTE @ole = sp_OADestroy @file
    EXECUTE @ole = sp_OADestroy @fs




原文转自:http://www.ltesting.net
