slackware10.1下架设apache+tomcat+jk实例

发布: 2007-6-21 12:06 | 作者: | 来源: | 查看: 22次 | 进入软件测试论坛讨论

　　软件下载：tomcat 5.5.9

http://mirror.vmmatrix.net/apache/dist/jakarta/tomcat-5/v5.5.9/bin/jakarta-tomcat-5.5.9.tar.gz

　　jk 1.2.14

http://www.apache.org/dist/jakarta/tomcat-connectors/jk/source/jk-1.2.14/jakarta-tomcat-connectors-1.2.14-src.tar.gz

　　安装tomcat　将下载的tomcat放到/usr/local目录下解压缩

tar zxvf jakarta-tomcat-5.*.tar.gz

　　将解压缩后目录改为tomcat

mv jakarta-tomcat-5.5.9 tomcat

　　启动tomcat

cd /usr/local/tomcat/bin
./startup.sh

　　输出如下代表启动成功

Using CATALINA_BASE:   /usr/local/tomcat
Using CATALINA_HOME:   /usr/local/tomcat
Using CATALINA_TMPDIR: /usr/local/tomcat/temp
Using JRE_HOME:       /usr/lib/java

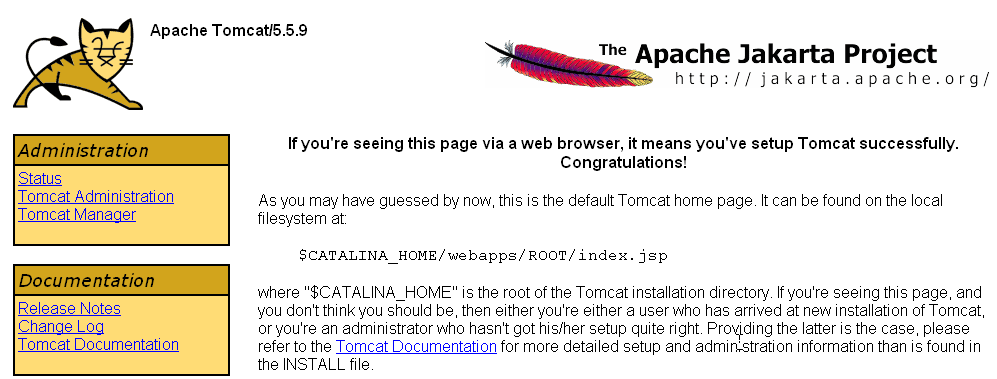

　　这个时候应该可以通过访问服务器的8080端口出现tomcat服务器的默认界面了。
如下

点击查看大图

　　安装jk 1.2.14　将文件jakarta-tomcat-connectors-1.2.14-src.tar.gz在/usr/local目录解压缩

cd /usr/local/
tar zxvf jakarta-tomcat-connectors*.tar.gz

　　编译安装

cd /usr/local/jakarta-tomcat-connectors-1.2.14-src/jk/native
./buildconfig.sh
./configure ?with-apxs="/usr/sbin/apxs” ?with-java-home="/usr/lib/java
make
make install

　　到这里jk 1.2.14已经安装好了。

　　配置apache可以解释jsp文件　拷贝mod_jk.so文件到/usr/libexec/apache目录下

cp /usr/local/jakarta-tomcat-connectors-1.2.14-src/jk/native/apache-1.3/mod_jk.so /usr/libexec/apache/

　　拷贝/usr/local/tomcat/conf/workers.properties.minimal文件到/etc/apache/workers.properties文件

cp /usr/local/tomcat/conf/workers.properties.minimal /etc/apache/workers.properties

　　写入/etc/apache/mod_jk.conf文件,内容如下

<IfModule mod_jk.c>
          JkWorkersFile /etc/apache/workers.properties
          JkLogFile /var/log/mod_jk.log
          JkLogLevel warn

          # Sample JkMounts. Replace these with the paths you would
        # like to mount from your JSP server.
          JkMount /*.jsp ajp13w
          JkMount /servlet/* ajp13w
          JkMount /examples/* ajp13w
</IfModule>

　　编辑/etc/apache/httpd.conf文件，加入如下内容

LoadModule jk_module libexec/apache/mod_jk.so
AddModule mod_jk.c
Include /etc/apache/mod_jk.conf

　　将/var/www/htdocs目录链接到/usr/local/tomcat/webapps/ROOT目录
　　注意：要先将原ROOT目录改名

cd /usr/local/tomcat/webapps/
mv ROOT ROOTBAK
ln -s /var/www/htdocs /usr/local/tomcat/webapps/ROOT
cp -r /usr/local/tomcat/webapps/ROOTBAK/* /usr/local/tomcat/webapps/ROOT/

　　重新启动tomcat和apache

cd /usr/local/tomcat/bin
./shutdown.sh
./startup.sh
/etc/rc.d/rc.httpd restart

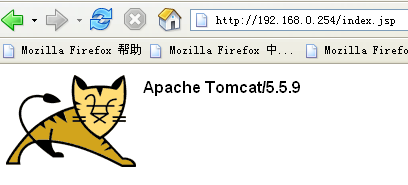

　　现在直接访问服务器/index.jsp就可以显示tomcat界面了。例如我的服务器是192.168.0.254

　　我在/var/www/htdocs/目录下有index.html index.php index.jsp三个文件

　　下面是分别访问的截图

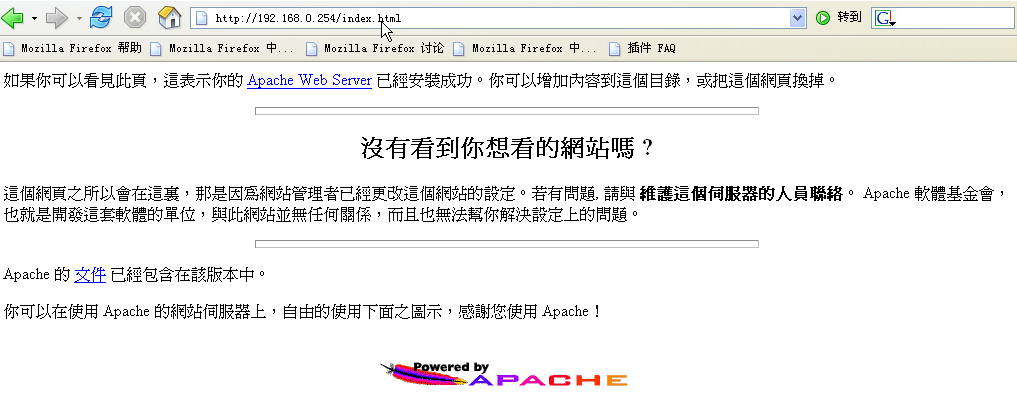

index.html
