服务器磁盘控制卡RedHat Linux 驱动制作

领测软件测试网

　　

服务器磁盘控制卡RedHat Linux 驱动制作

本文档介绍了如何在DELL 服务器上制作磁盘控制卡驱动的方法

1.执行EXE文件[windows]

2.使用rawritewin软件[windows]

3.使用rwfloppy软件[DOS]

4.使用Linux dd命令[Linux]

制作前准备

1.空白软盘一片

2.Red Hat linux CD 1

制作驱动程序

使用rawritewin软件[windows]

1.使用 PowEdge Service and Diagnostic Utilities 光盘,下载驱动(也可以到dell中国网站下载驱动)

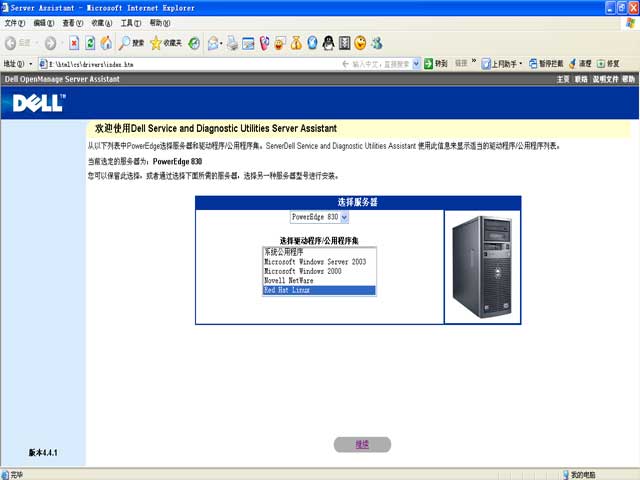

选择服务器的机型和操作系统

点击查看大图

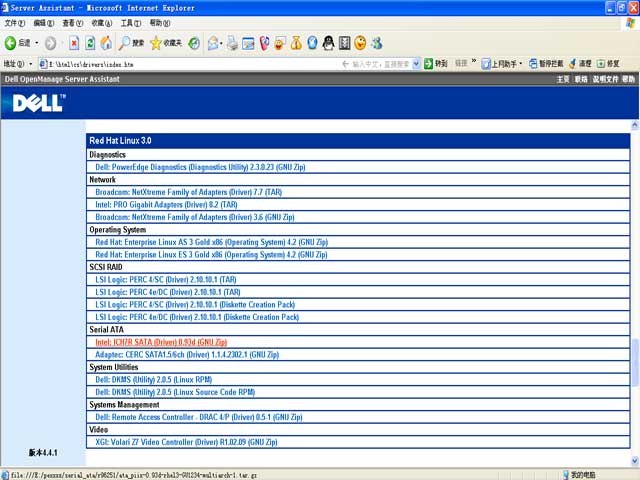

下载驱动

点击查看大图

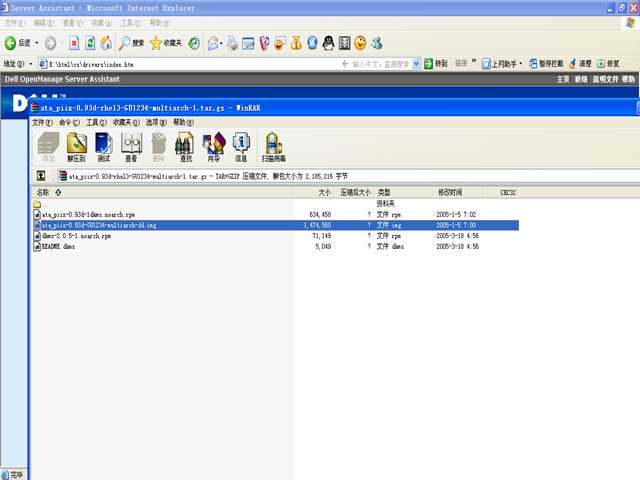

把驱动中img保存释放到磁盘下

点击查看大图

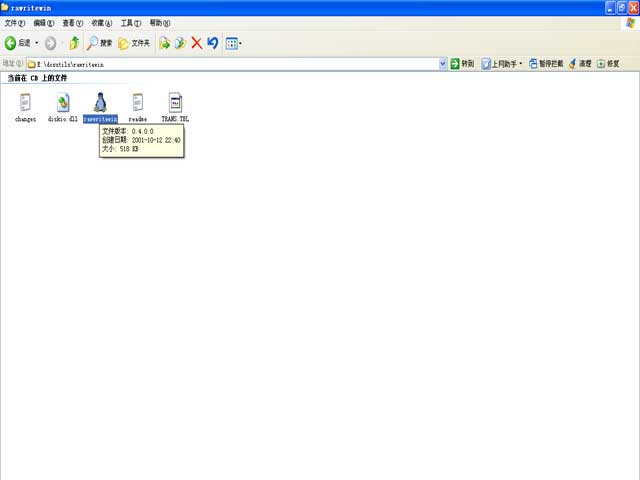

2.将Red Hat linux CD 1 光盘放入光驱,到 \dosutils\rawritewin 目录下,使用rawritewin软件

点击查看大图

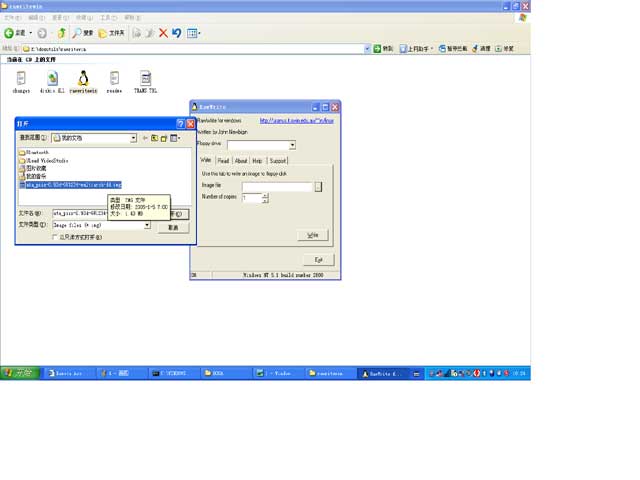

将 Image file 指向驱动img文件中(如 c:\*.img),然后点击 Write

点击查看大图

完成驱动制作

使用Linux dd命令[Linux]

下载驱动包都会有readme.txt:

Download
1. Click the "Download Now" link to download the file.
2. If the Export Compliance Disclaimer window appears, click the "I agree" link to accept the agreement.
3. When the File Download window appears, click "Save" to save the file to your hard drive.

Installation
1. Log in as the root user
2. At a command prompt, type "tar xzvf ata_piix-0.93c-1c.tar.gz to extract the files from the compressed archive
3. At a command prompt, type "cd ata_piix-0.93c-1c"
4. Download the latest dkms RPM from support.dell.com, or install the one from the archive by typing "rpm -Uvh dkms-1.10-1.noarch.rpm". If you receive a message that a newer dkms is installed on your system already, proceed to the next step
5. At a command prompt, type "rpm -Uvh ata_piix-0.93c-1dkms.noarch.rpm" to install the device driver.

Using a Driver Disk to install Red Hat Enterprise Linux
The driver disk images are signified by the corresponding Red Hat Enterprise Linux 3 Update release and the OS architecture. For example, GU1U2 means the image supports installations for Gold, Update 1, and Update2, while i386 or x86_64 means it supports a specific OS architecuture

1. Put a floppy disk into the floppy drive on your system
2. At a command prompt, type "dd if= of=/dev/fd0". The driver disk is now ready to use
3. Boot to your Red Hat Enterprise Linux 3 installation media in the system you wish to install. At the "boot:" prompt, type "linux dd" to start the installation process.
4. When prompted, put the floppy into the floppy drive and follow the onscreen instructions.
